The grade of mobile phone cells is also divided into ABC? How to identify the advantages and disadvantages of mobile phone cells?

In the old society, people were divided into three, six, nine and so on, but the new China advocated equality for all. I never thought that in the production and manufacturing process of mobile phone batteries, as the energy storage of mobile phone batteries, the battery cells are generally divided into three different grades according to their quality.

The grade classification of mobile phone cells is mainly based on the quality control and performance in the production process

A product battery cell cardamom is impeccable

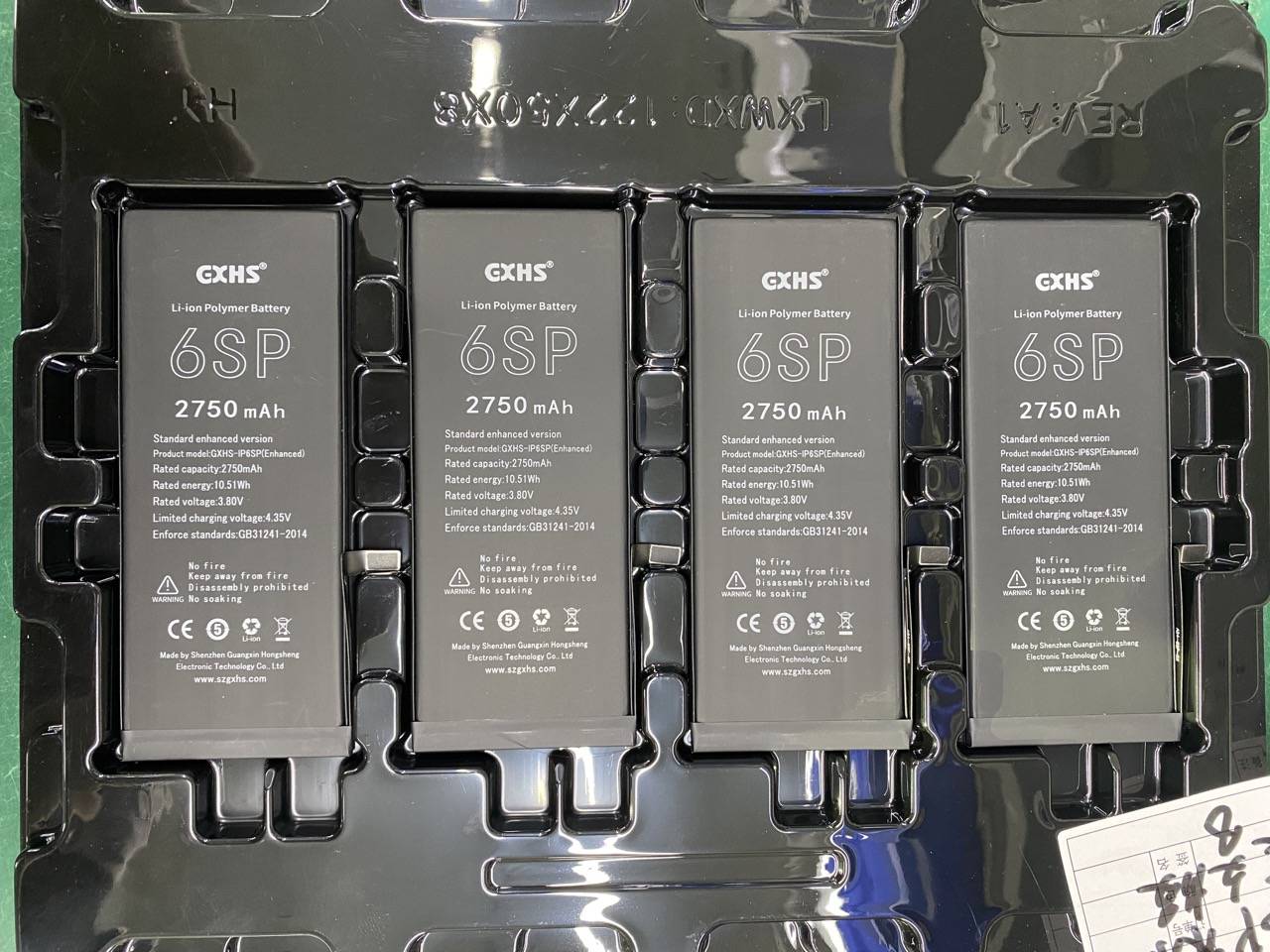

A-grade cells are the highest quality cells, and are usually ordered directly by the battery production factory to the battery cell factory, and the battery cell factory produces according to the factory's production capacity and technical capabilities. The A-grade battery cells are made in full accordance with the standards of the order, including the battery capacity, thickness, length and width and other parameters are in line with the requirements. The performance and quality of A-grade battery cells are very stable, and they are usually used in high-end equipment or occasions with high requirements for battery performance.

B product battery cells are unsatisfactory in the boudoir

B-grade cells are the next best choice, usually due to defect rates in the production process. B-grade cells may deviate slightly from the order requirements in terms of capacity, length, width or thickness, but their performance is still not compromised. The price of B-grade batteries is usually cheaper than that of A-grade batteries, and sometimes they are sold directly. In addition, if a product A battery is placed in the warehouse for 3-6 months and is not shipped, it may also be regarded as a product B battery.

C-grade battery cells are uneven

C-grade cells are the lowest quality cells, usually due to B-grade cells that have been in the warehouse for more than 8 months and have not been shipped. The performance and quality of C-grade battery cells are relatively poor, and they are usually not used in high-end equipment, but are used in some occasions where battery performance is not high.

Application scenarios of different grades of battery cells

A-grade battery cells: suitable for high-end equipment or occasions with high requirements for battery performance.

B-grade battery cells: suitable for equipment with certain requirements for battery performance but limited budget.

C-grade battery cells: suitable for low-end equipment or backup power supply that does not require high battery performance.

By understanding the characteristics and application scenarios of different grades of battery cells, you can better choose battery products that suit your needs.

So, in addition to the grade of the cell, what other way can be used to identify the advantages and disadvantages of the mobile phone cell?

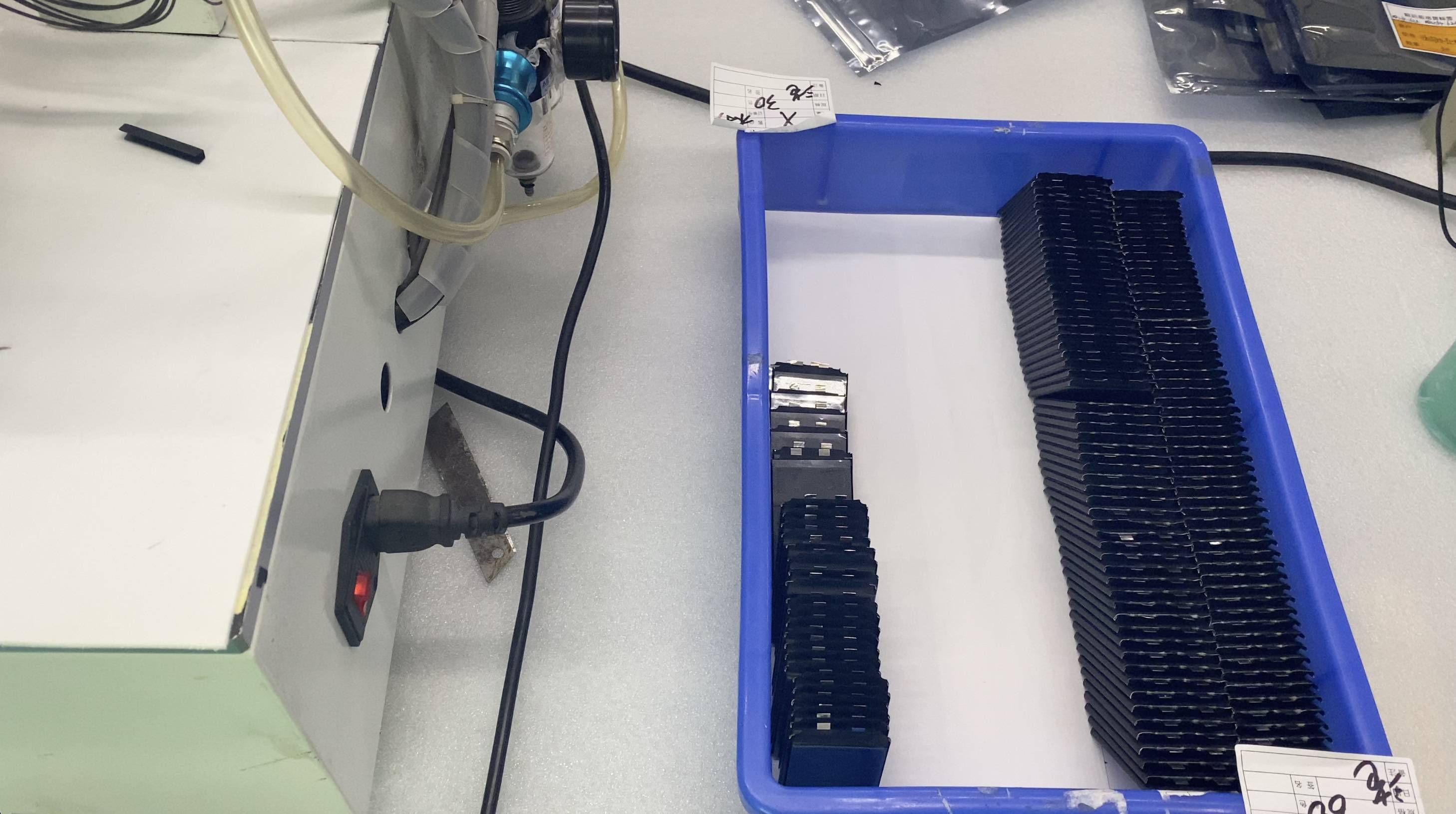

The methods of screening the quality of battery cells mainly include the following aspects:

Check the appearance of the cell: A good cell should not be damaged by obvious deformation, dents, warping, cracks, etc. These damages indicate that the battery cell has suffered severe mechanical damage and is not suitable for use.

Check the battery cell capacity: The capacity of the battery cell is one of the important indicators to measure the performance of the battery. A good battery cell should be able to provide enough power. The capacity can be calculated by testing the discharge time and discharge voltage of the battery, and if the capacity does not match the manufacturer's advertisement, there may be a quality problem.

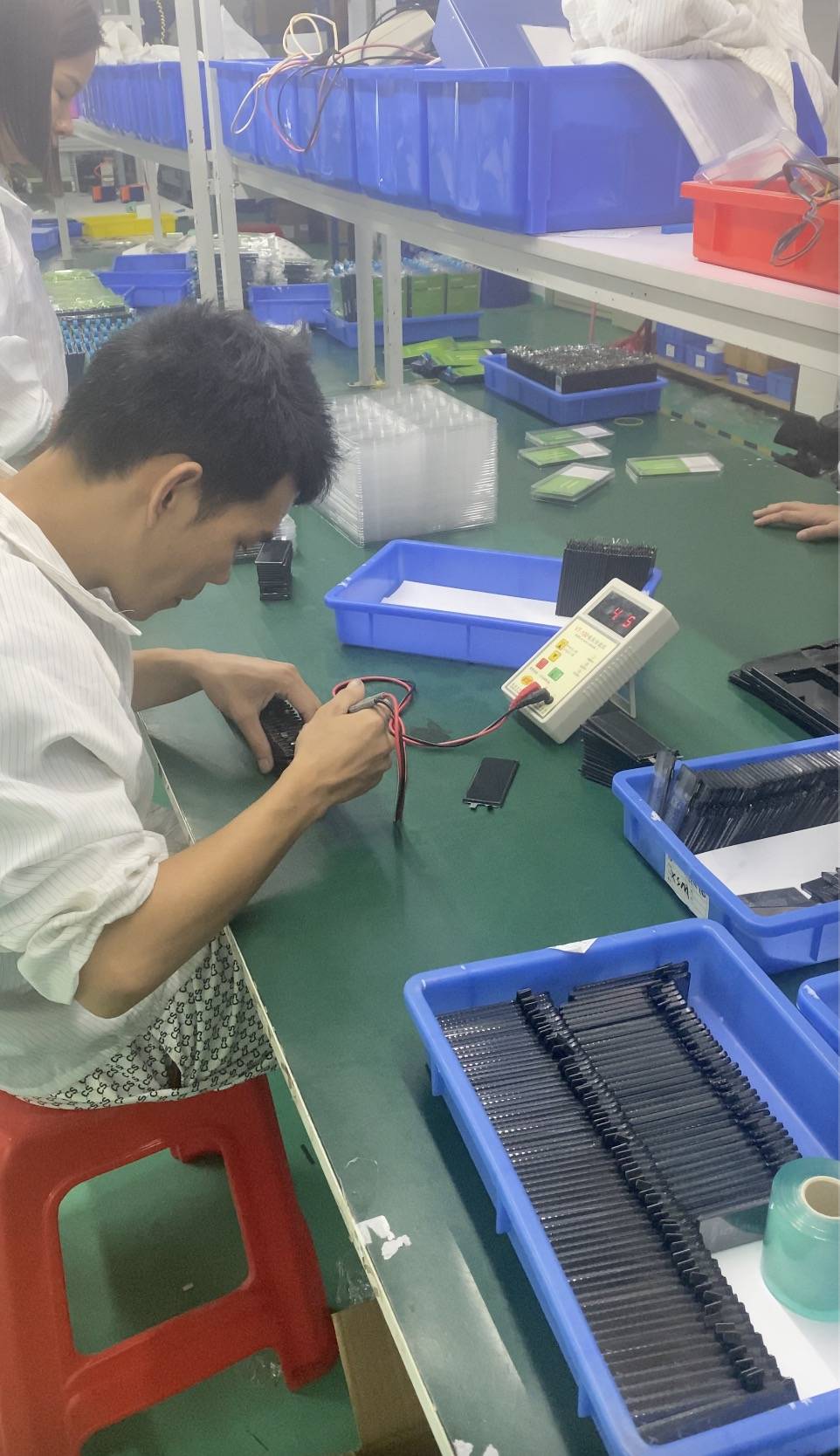

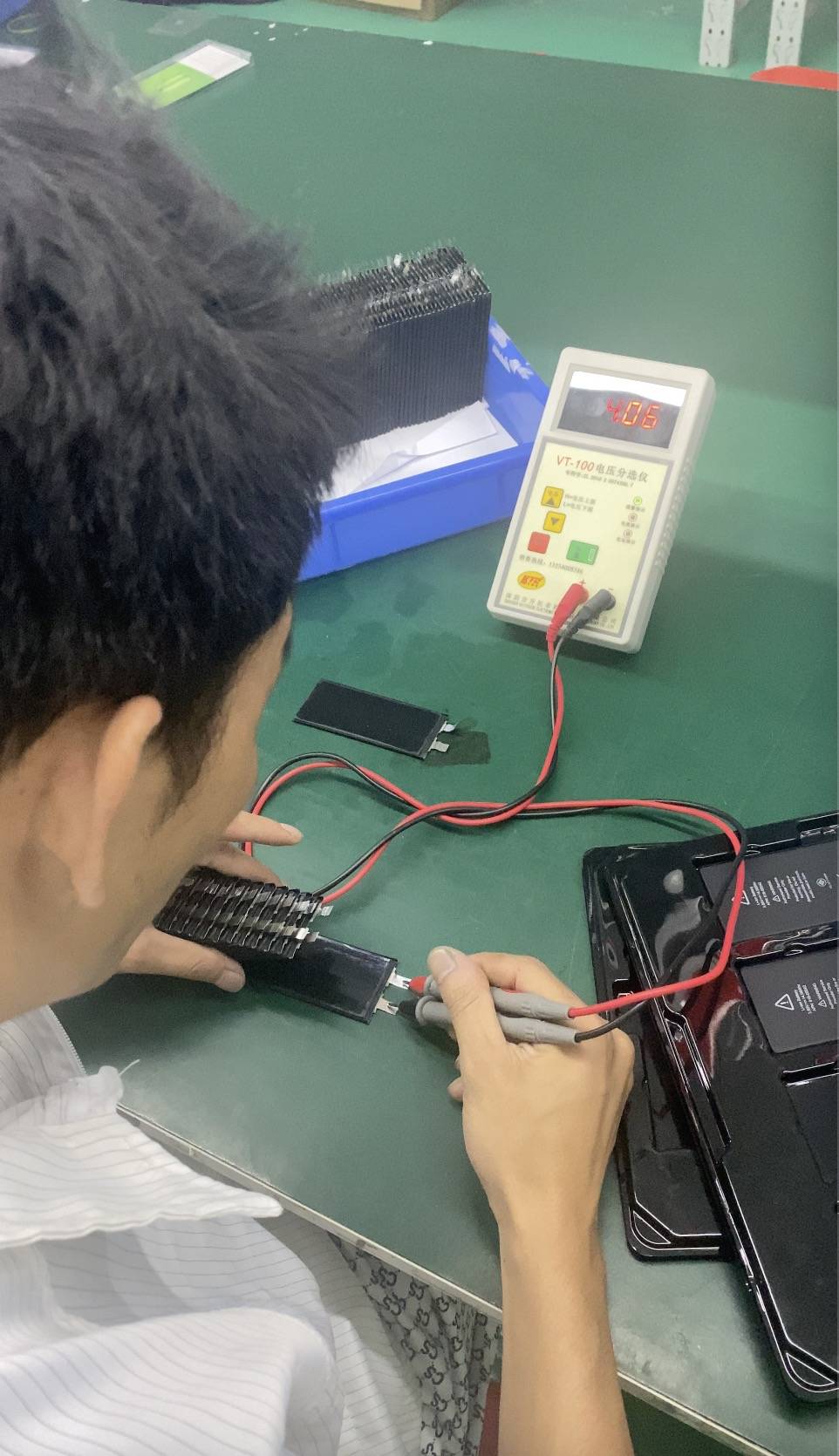

Check the internal resistance of the cell: The internal resistance is another key indicator of cell performance. The smaller the internal resistance, the stronger the output current capacity of the cell and the longer the service life. The internal resistance of the battery cell can be tested by professional test instruments, if the internal resistance is large, it means that the quality of the battery cell is not good enough.

Check the cycle life of the battery: A good battery cell should have a long life. Frequent charging and discharging can lead to a shorter cell life. The life of the battery cell can be evaluated by testing the number of cycles of charge and discharge of the battery and the online time.

Check the heating of the battery cell: The battery cell will heat up when it is working, but excessive heating may cause the battery cell to be damaged or even explode. A good battery cell should be able to keep the temperature low under normal operating conditions. You can test the temperature of the battery cell to determine whether there is a problem of excessive heating.

The above is the grade division and screening method of mobile phone cells, I hope that in the process of replacing the battery, you can keep your eyes open and choose a better and more suitable mobile phone battery.
